Architectural · I-YT72W

Glass Guardrail Base Shoe at Glulam Beam

Materials

Steel Stainless Steel Timber / Wood Glass / Glazing

Elements

Beams Railings / Guards Floors / Slabs

Connections

Timber / Mass-Timber Connection

About this detail

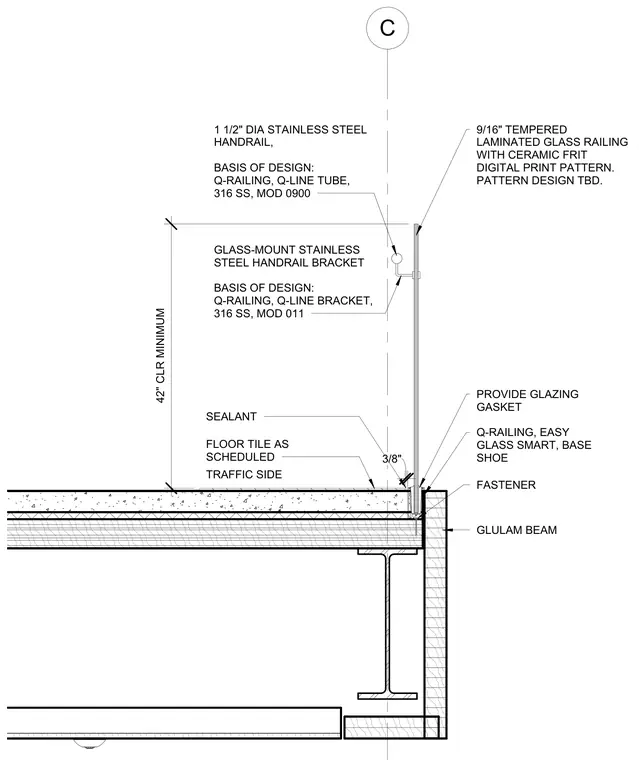

A 9/16-inch tempered laminated glass railing with a ceramic frit digital print pattern is secured into an Easy Glass Smart base shoe anchored to a glulam beam. The base shoe includes a glazing gasket and is fastened adjacent to scheduled floor tile on the traffic side, with a 3/8-inch joint sealed accordingly. A 1 1/2-inch diameter type 316 stainless steel handrail is attached to the glass using a matching stainless steel glass-mount bracket, maintaining a 42-inch minimum clearance. The glulam framing bears over a structural steel beam assembly below.
