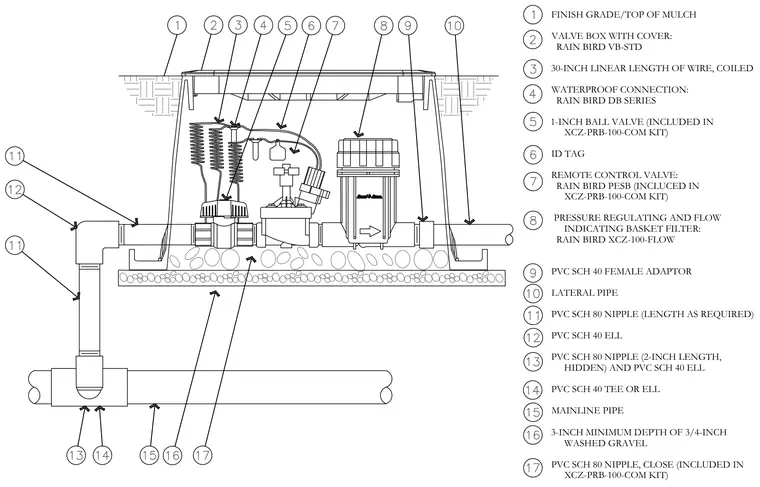

An irrigation valve box assembly houses a commercial control zone kit connected to a mainline pipe and lateral piping below finish grade. The mainline pipe connects upward through a PVC schedule 80 close nipple and PVC schedule 40 tee or ell, extending via schedule 80 nipples and schedule 40 ells to a one-inch ball valve and remote control valve. A pressure regulating and flow indicating basket filter connects in-line downstream of the control valve, leading to a PVC schedule 40 female adaptor and lateral pipe. Waterproof connections tie into a thirty-inch linear length of coiled wire with an identification tag. The entire assembly rests on a minimum three-inch depth of three-quarter-inch washed gravel bed within a standard linear valve box with cover set flush to the finish grade and mulch.
FINISH GRADE/TOP OF MULCH VALVE BOX WITH COVER: RAIN BIRD VB-STD 30-INCH LINEAR LENGTH OF WIRE, COILED WATERPROOF CONNECTION: RAIN BIRD DB SERIES 1-INCH BALL VALVE (INCLUDED IN XCZ-PRB-100-COM KIT) ID TAG REMOTE CONTROL VALVE: RAIN BIRD PESB (INCLUCED IN XCZ-PRB-100-COM KIT) PRESSURE REGULATING AND FLOW INDICATING BASKET FILTER: RAIN BIRD XCZ-100-FLOW PVC SCH 40 FEMALE ADAPTOR LATERAL PIPE PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) PVC SCH 40 ELL PVC SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND PVC SCH 40 ELL PVC SCH 40 TEE OR ELL MAINLINE PIPE 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL PVC SCH 80 NIPPLE, CLOSE (INCLUDED IN XCZ-PRB-100-COM KIT)
