Interiors · I-YJEEN

Steel Truss Cane Guard Long Section

Materials

Steel

Elements

Facades / Cladding Trusses Connections / Plates

Connections

Welded Connection

About this detail

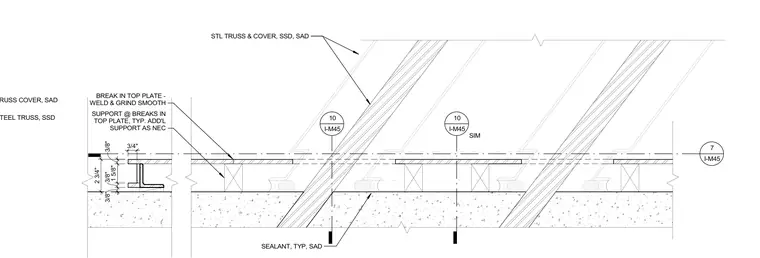

A steel truss and cover assembly is supported by breaks in the top plate with additional support provided as necessary. Welds at the breaks in the top plate are specified to be welded and ground smooth. Sealant is applied typically throughout the assembly, with specific dimensional clearances including three-quarter-inch, three-eighth-inch, and one-and-five-eighth-inch spacing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
