The radar level sensor mounts to a tank flange with the sensor face positioned parallel to the liquid surface. The maximum liquid level must remain outside the blocking distance of the sensor. The sensor installs off-center, allowing the radar beam to radiate through the tank material. The connecting cable of the level transmitter remains unsupported and is left unused as a suspension wire.

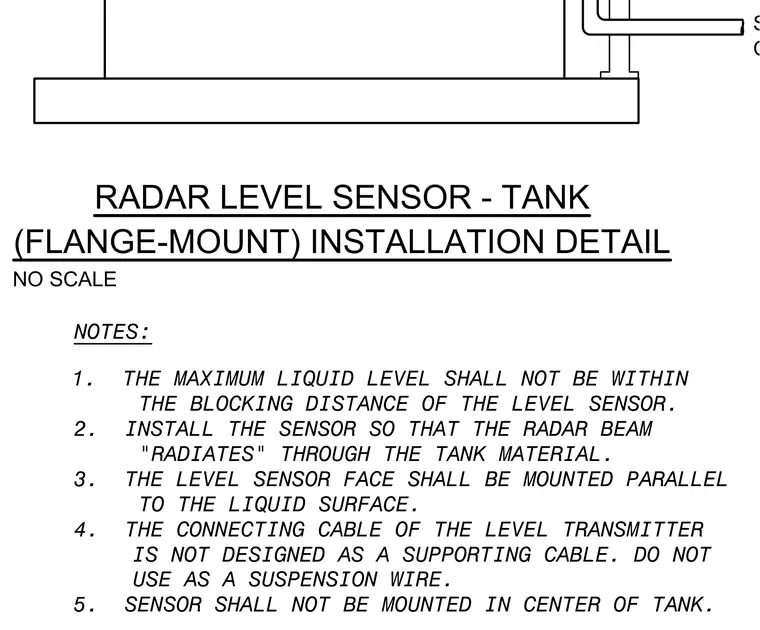

SEE ELECTRICAL DRAWINGS FOR CONNECTION REQUIREMENT NOTES: 1. THE MAXIMUM LIQUID LEVEL SHALL NOT BE WITHIN THE BLOCKING DISTANCE OF THE LEVEL SENSOR. 2. INSTALL THE SENSOR SO THAT THE RADAR BEAM "RADIATES" THROUGH THE TANK MATERIAL. 3. THE LEVEL SENSOR FACE SHALL BE MOUNTED PARALLEL TO THE LIQUID SURFACE. 4. THE CONNECTING CABLE OF THE LEVEL TRANSMITTER IS NOT DESIGNED AS A SUPPORTING CABLE. DO NOT USE AS A SUSPENSION WIRE. 5. SENSOR SHALL NOT BE MOUNTED IN CENTER OF TANK. RADAR LEVEL SENSOR - TANK (FLANGE-MOUNT) INSTALLATION DETAIL NO SCALE
