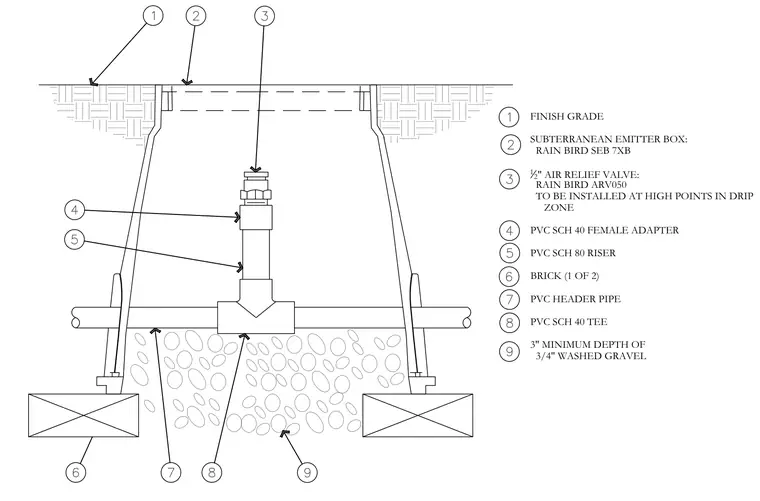

An air relief valve is installed at high points in the drip zone on a PVC schedule forty tee connected to a PVC header pipe. The assembly features a half-inch Rain Bird ARV050 air relief valve attached via a PVC schedule forty female adapter and a PVC schedule eighty riser. The valve and connection are housed inside a Rain Bird SEB 7XB subterranean emitter box flush with the finish grade. The emitter box is supported by brick pieces resting on a three-inch minimum depth bed of three-quarter-inch washed gravel.
FINISH GRADE SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " AIR RELIEF VALVE: RAIN BIRD ARV050 TO BE INSTALLED AT HIGH POINTS IN DRIP ZONE PVC SCH 40 FEMALE ADAPTER PVC SCH 80 RISER BRICK (1 OF 2) PVC HEADER PIPE PVC SCH 40 TEE 3" MINIMUM DEPTH OF 3/4" WASHED GRAVEL
