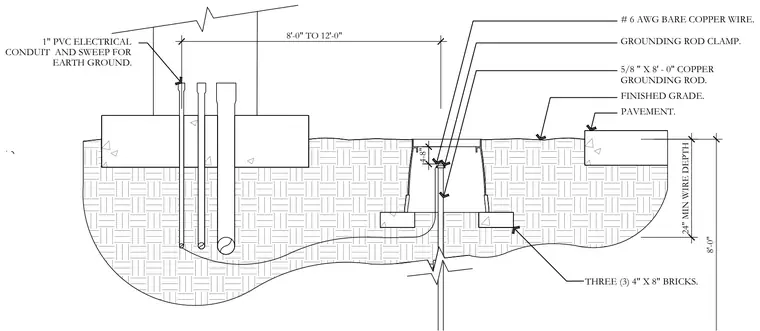

A five-eighths-inch by eight-foot copper grounding rod is driven into the earth below finished grade and pavement. A grounding rod clamp connects the rod to a number six AWG bare copper wire. The wire routes into a one-inch PVC electrical conduit and sweep for earth ground, maintaining a twenty-four-inch minimum wire depth. Three four-inch by eight-inch bricks provide surrounding stabilization at a depth of four to eight inches.
THREE (3) 4" X 8" BRICKS. PAVEMENT. FINISHED GRADE. GROUNDING ROD CLAMP. # 6 AWG BARE COPPER WIRE. 1" PVC ELECTRICAL CONDUIT AND SWEEP FOR EARTH GROUND. 8'-0" 24" MIN WIRE DEPTH 4-8" 8'-0" TO 12'-0" 5/8 " X 8' - 0" COPPER GROUNDING ROD. 7^ n l <i ^^ J <7 <7 ' ^ 3 <! \A M. \7 © h 0 -L-L
