An irrigation remote-control valve is housed within a standard valve box with a cover set flush to the finish grade or top of mulch. The valve connects to a PVC mainline pipe using a schedule 80 close nipple, schedule 40 elbow, and schedule 80 nipple, extending up to the valve with a male adapter and lateral pipe connections. A 3-inch minimum depth of three-quarter-inch washed gravel sits beneath the valve box on four bricks. Two waterproof connections join a 30-inch length of 2-wire cable to the valve wiring, accompanied by an identification tag.

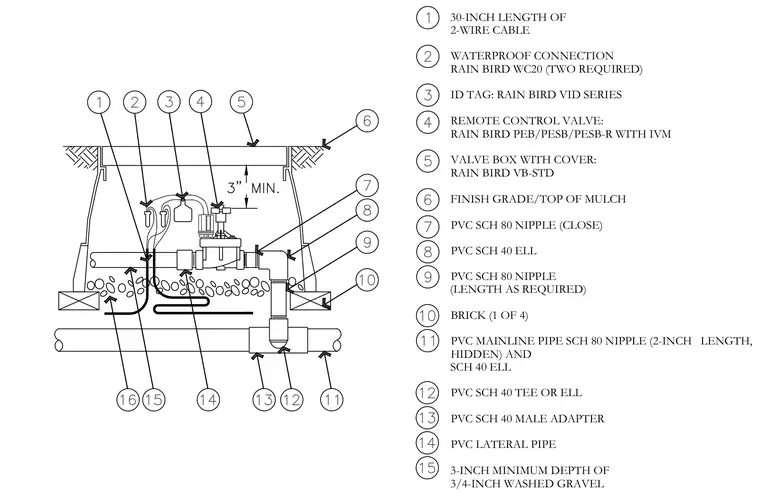

30-INCH LENGTH OF 2-WIRE CABLE WATERPROOF CONNECTION RAIN BIRD WC20 (TWO REQUIRED) ID TAG: RAIN BIRD VID SERIES REMOTE CONTROL VALVE: RAIN BIRD PEB/PESB/PESB-R WITH IVM VALVE BOX WITH COVER: RAIN BIRD VB-STD FINISH GRADE/TOP OF MULCH PVC SCH 80 NIPPLE (CLOSE) PVC SCH 40 ELL PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) BRICK (1 OF 4) PVC MAINLINE PIPE SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND SCH 40 ELL PVC SCH 40 TEE OR ELL PVC SCH 40 MALE ADAPTER PVC LATERAL PIPE 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL
