A sub-surface dripline center feed connection is embedded in amended soil beneath a mulch layer. A PVC supply manifold header lateral line connects to a schedule 40 PVC tee with slip by slip by thread connections. A three-quarter-inch schedule 80 PVC nipple of variable length rises from the tee to a 17-millimeter barb tee with a three-quarter-inch threaded fitting. Sub-surface dripline tubing branches outward from the barbed fitting to deliver irrigation. Amended soil and backfill material surround the vertical riser assembly up to the surface mulch layer.

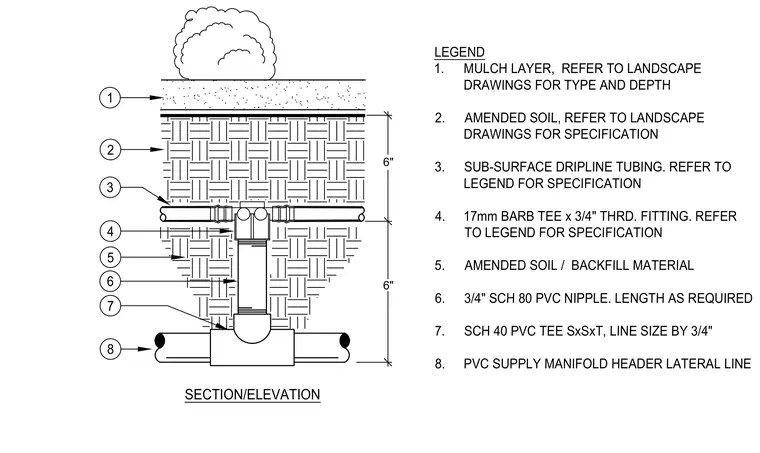

SECTION/ELEVATION LEGEND 1. MULCH LAYER, REFER TO LANDSCAPE DRAWINGS FOR TYPE AND DEPTH 2. AMENDED SOIL, REFER TO LANDSCAPE DRAWINGS FOR SPECIFICATION 3. SUB-SURFACE DRIPLINE TUBING. REFER TO LEGEND FOR SPECIFICATION 4. 17mm BARB TEE x 3/4" THRD. FITTING. REFER TO LEGEND FOR SPECIFICATION 5. AMENDED SOIL / BACKFILL MATERIAL 6. 3/4" SCH 80 PVC NIPPLE. LENGTH AS REQUIRED 7. SCH 40 PVC TEE SxSxT, LINE SIZE BY 3/4" 8. PVC SUPPLY MANIFOLD HEADER LATERAL LINE 6" 2 3 4 6 8 7 6" 5 1
