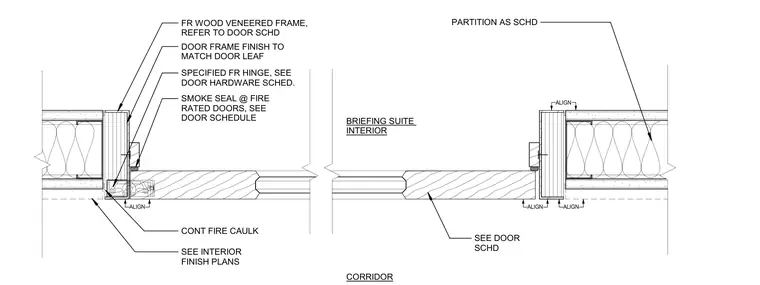

This interior wall jamb detail shows a fire-rated wood veneered door frame installed in a partition matching the scheduled specifications. The frame receives a finish matching the door leaf and is secured adjacent to a specified fire hinge and smoke seal at fire-rated doors. Continuous fire caulking is applied at the perimeter of the frame assembly, transitioning to interior finish plans and corridor partitions.
SEE DOOR SCHD PARTITION AS SCHD CORRIDOR FR WOOD VENEERED FRAME, REFER TO DOOR SCHD CONT FIRE CAULK DOOR FRAME FINISH TO MATCH DOOR LEAF SPECIFIED FR HINGE, SEE DOOR HARDWARE SCHED. SMOKE SEAL @ FIRE RATED DOORS, SEE DOOR SCHEDULE SEE INTERIOR FINISH PLANS BRIEFING SUITE INTERIOR ALIGN ALIGN ALIGN ALIGN
