The rotameter must be mounted within six degrees of true vertical for proper operation. Failure to drain the rotameter when isolated may result in tube breakage caused by fluid pressure. A throttling valve connects to the top NPT fitting, while an optional drain valve connects to the lower piping assembly to allow complete drainage.

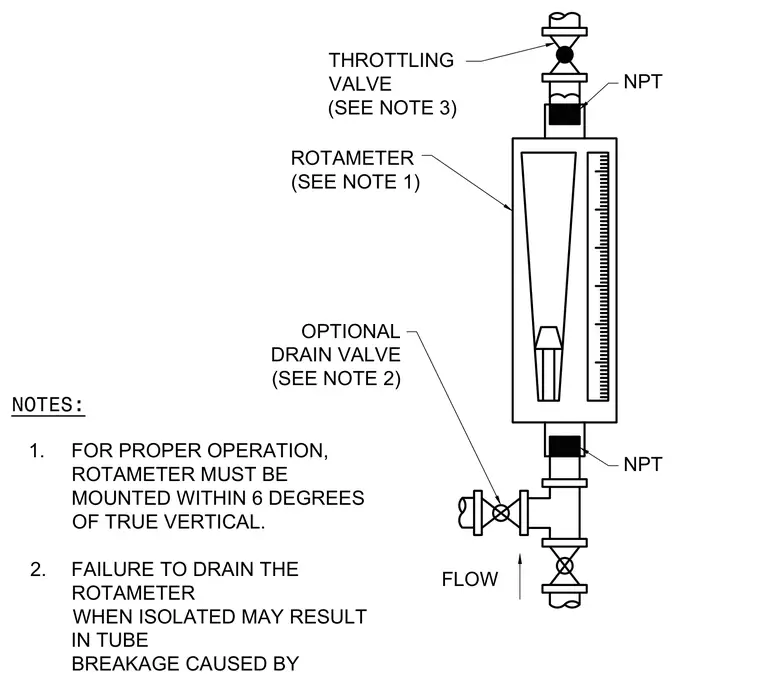

1. FOR PROPER OPERATION, ROTAMETER MUST BE MOUNTED WITHIN 6 DEGREES OF TRUE VERTICAL. 2. FAILURE TO DRAIN THE ROTAMETER WHEN ISOLATED MAY RESULT IN TUBE BREAKAGE CAUSED BY FLOW ROTAMETER (SEE NOTE 1) OPTIONAL DRAIN VALVE (SEE NOTE 2) THROTTLING VALVE (SEE NOTE 3) NPT NPT NOTES:
