Drip Control Zone Kit Detail

Elements

Waterproofing / Flashing Connections / Plates

About this detail

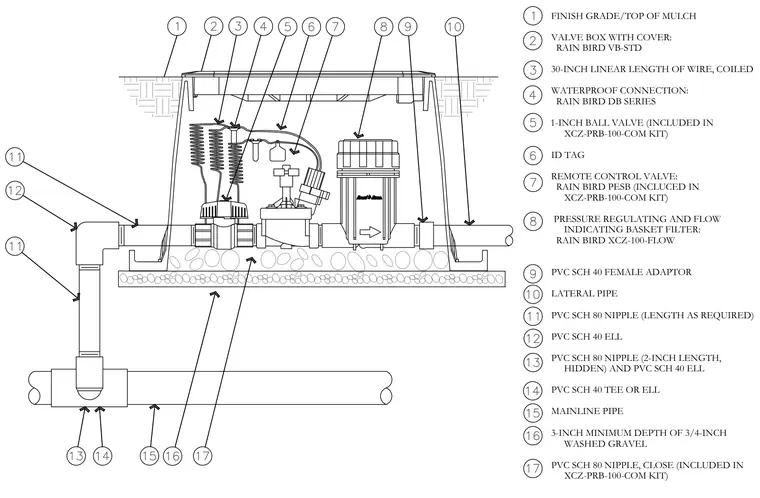

An underground valve box with a cover sits at the finish grade over a minimum three-inch depth of three-quarter-inch washed gravel bedding. The assembly connects to the mainline pipe via PVC schedule eighty nipples and schedule forty tees, ells, and female adaptors. Inside the enclosure, a one-inch ball valve, ID tag, waterproof wire connections, a remote control valve, and a pressure regulating and flow indicating basket filter join the lateral pipe network.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
