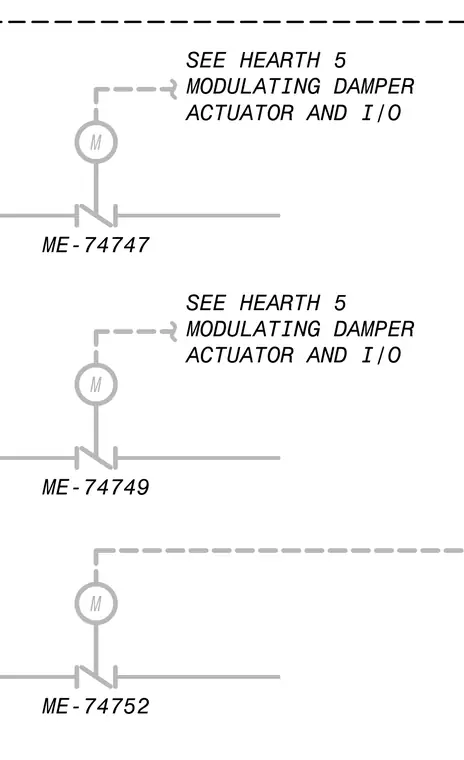

Modulating dampers are equipped with electric actuators and input/output controls connected to mechanical equipment identifiers ME-74747, ME-74749, and ME-74752. Control wiring routing is indicated with dashed lines connecting to the damper actuators per hearth 5 specifications.
M ME-74747 M ME-74749 M ME-74752 SEE HEARTH 5 MODULATING DAMPER ACTUATOR AND I/O SEE HEARTH 5 MODULATING DAMPER ACTUATOR AND I/O
