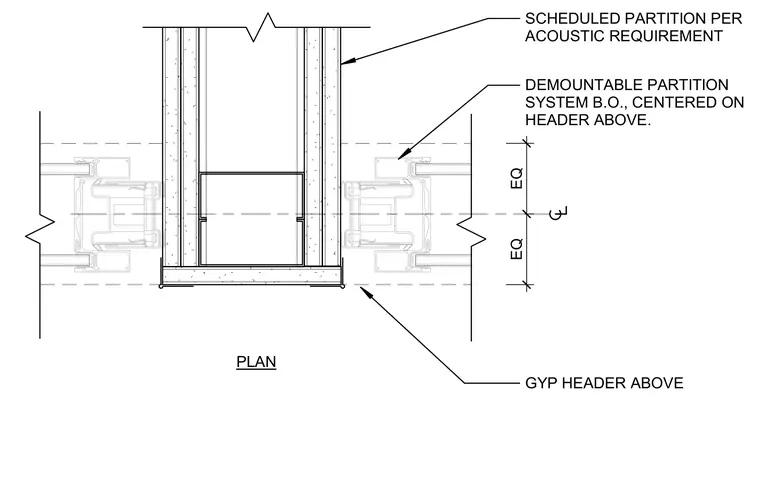

A demountable partition system centers on a gypsum board header above, intersecting a scheduled partition built per acoustic requirements. The assembly details the connection between the demountable framing components and the heavier acoustic wall construction.
PLAN SCHEDULED PARTITION PER ACOUSTIC REQUIREMENT DEMOUNTABLE PARTITION SYSTEM B.O., CENTERED ON HEADER ABOVE. GYP HEADER ABOVE EQ EQ
