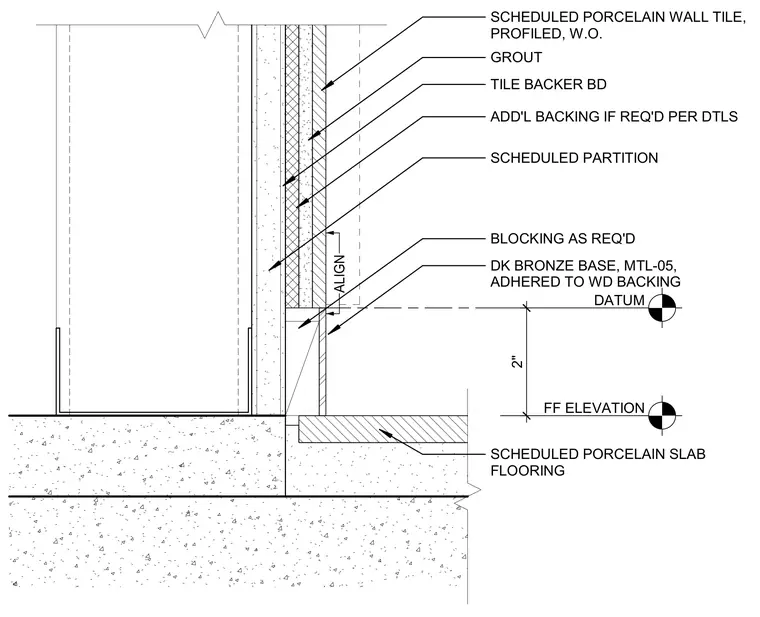

This interior wall base assembly features scheduled porcelain wall tile and grout adhered over tile backer board on a scheduled partition. Additional wood blocking is provided as required behind the wall finish. A dark bronze metal base, designated as MTL-05, is adhered to a wood backing block and aligned with the finished floor elevation datum. Scheduled porcelain slab flooring extends across the concrete floor slab below.
FF ELEVATION DATUM 2" SCHEDULED PARTITION TILE BACKER BD GROUT SCHEDULED PORCELAIN WALL TILE, PROFILED, W.O. DK BRONZE BASE, MTL-05, ADHERED TO WD BACKING BLOCKING AS REQ'D ALIGN SCHEDULED PORCELAIN SLAB FLOORING ADD'L BACKING IF REQ'D PER DTLS
