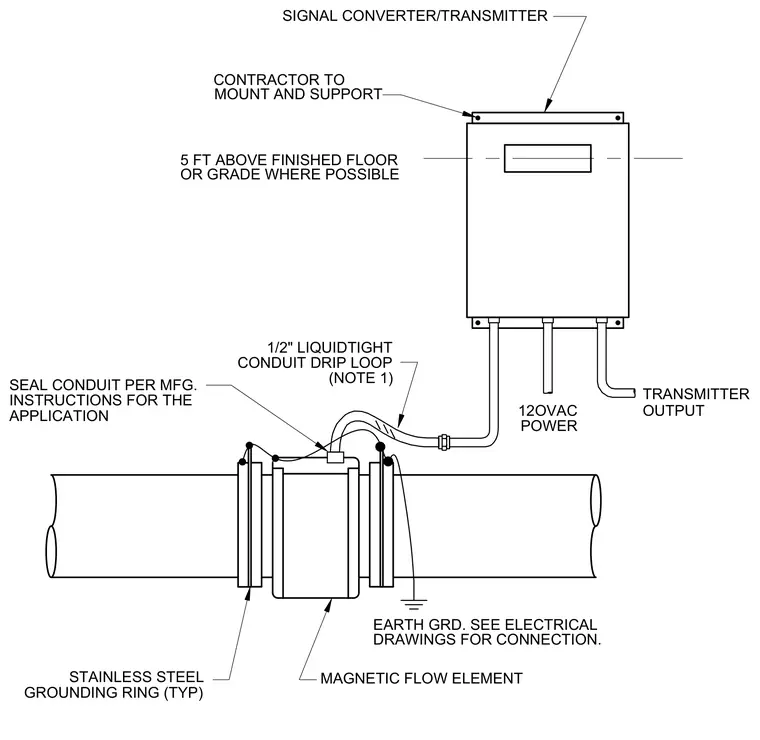

A magnetic flow element is installed inline with stainless steel grounding rings on each side connected to earth ground. A signal converter and transmitter is mounted five feet above the finished floor or grade where possible. A one-half-inch liquid-tight conduit forms a drip loop between the elements with sealed connections per manufacturer instructions. Power is supplied via a one-hundred-twenty volt alternating current line alongside a separate transmitter output conduit.
CONTRACTOR TO MOUNT AND SUPPORT 5 FT ABOVE FINISHED FLOOR OR GRADE WHERE POSSIBLE CONDUIT DRIP LOOP 1/2" LIQUIDTIGHT APPLICATION STAINLESS STEEL INSTRUCTIONS FOR THE SEAL CONDUIT PER MFG. 12OVAC EARTH GRD. SEE ELECTRICAL POWER TRANSMITTER MAGNETIC FLOW ELEMENT SIGNAL CONVERTER/TRANSMITTER OUTPUT DRAWINGS FOR CONNECTION. (NOTE 1) GROUNDING RING (TYP)
