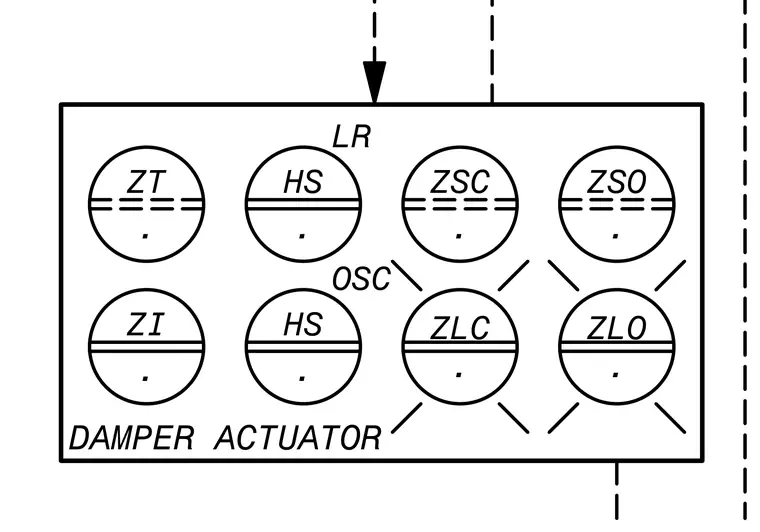

Damper actuator control wiring diagram featuring terminal points ZT, ZI, ZSC, ZSO, ZLC, and ZLO along with high signal LR and OSC connections. Dashed lines indicate external signal routing to the actuator control box.
ZT . ZI . DAMPER ACTUATOR ZSC . ZSO . . ZLC . ZLO HS . LR HS . OSC
