Drip Control Zone Kit Detail

Elements

Waterproofing / Flashing Connections / Plates

About this detail

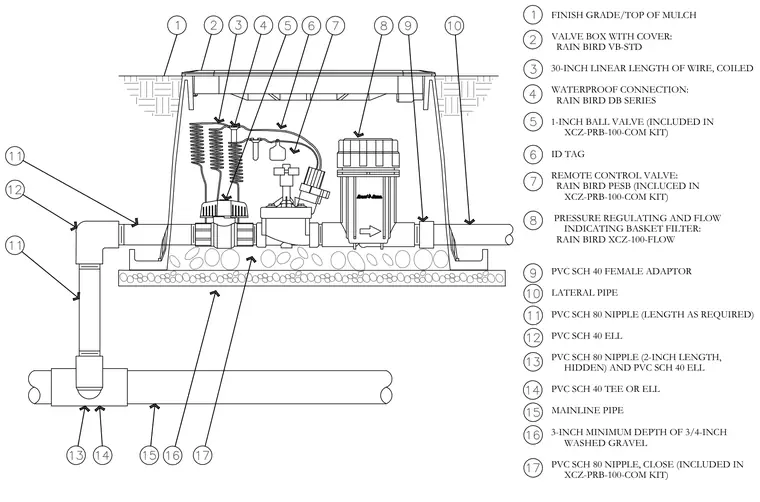

An underground irrigation valve box assembly connects to a mainline pipe through a series of PVC schedule 80 nipples, elbows, and a schedule 40 tee. The assembly is housed within a Rain Bird VB-STD valve box with a cover, set upon a minimum three-inch depth of three-quarter-inch washed gravel bed below the finish grade and mulch. Inside the enclosure, a one-inch ball valve and a Rain Bird PESB remote control valve connect in-line alongside a Rain Bird XCZ-100-flow pressure regulating and flow indicating basket filter using PVC schedule 40 female adaptors. Waterproof connections house thirty-inch coiled lengths of wire, while an identification tag marks the remote control valve for servicing.
