Signage is mounted adjacent to the standard door within a specified height range for tactile characters, with a minimum height of 1219 millimeters and a maximum of 1524 millimeters. Door mounted signs are centered on the door where applicable, and similar sign types are mounted uniformly throughout the building.

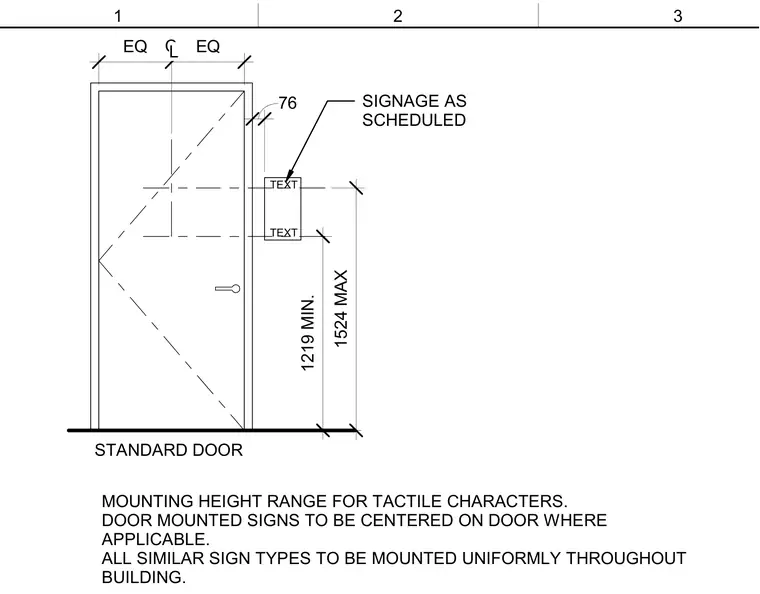

SIGNAGE AS SCHEDULED EQ EQ 1524 MAX MOUNTING HEIGHT RANGE FOR TACTILE CHARACTERS. DOOR MOUNTED SIGNS TO BE CENTERED ON DOOR WHERE APPLICABLE. ALL SIMILAR SIGN TYPES TO BE MOUNTED UNIFORMLY THROUGHOUT BUILDING. C L TEXT TEXT 1219 MIN. 76 STANDARD DOOR 1 2 3
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
