Millwork Casework Cabinet Section with Bracket Support

Elements

About this detail

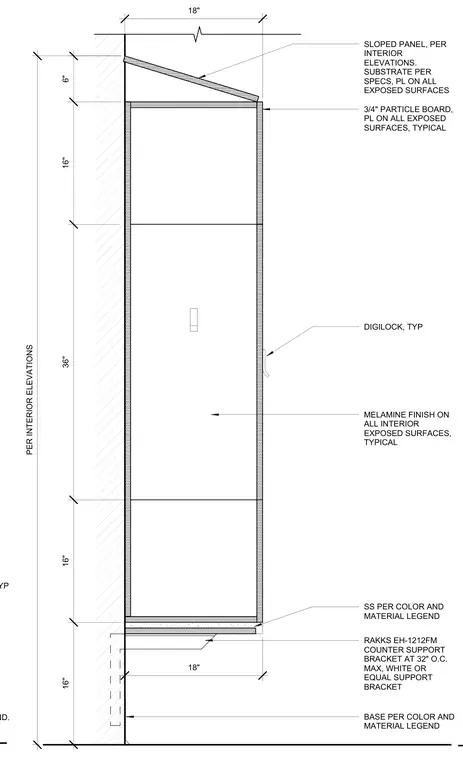

This wall-mounted millwork assembly consists of three-quarter-inch particle board framing with plastic laminate on all exposed surfaces and a melamine finish on interior surfaces. A sloped top panel matches the interior elevations and substrate specifications. The cabinet is secured using Rakks EH-1212FM counter support brackets spaced at thirty-two inches on center maximum. A typical Digilock mechanism provides security for the unit, while the base and stainless steel components follow the color and material legend.
