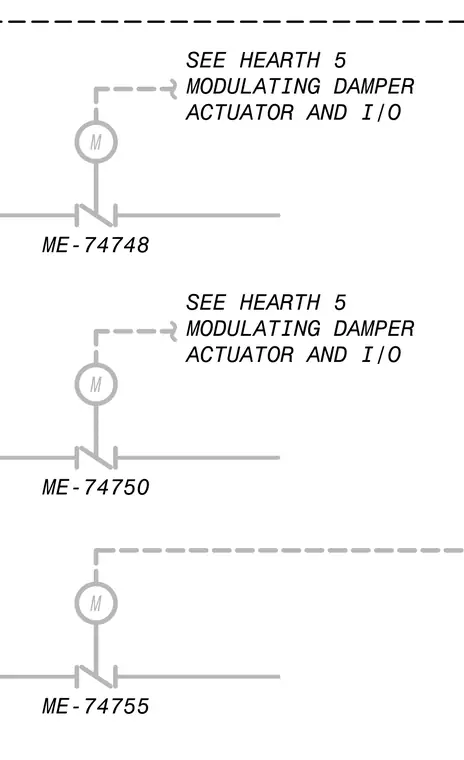

Modulating damper actuators connect to associated ductwork and are controlled via input/output points referenced per Hearth 5. The assemblies are identified with equipment tags ME-74748, ME-74750, and ME-74755.
M ME-74748 M ME-74750 M ME-74755 SEE HEARTH 5 MODULATING DAMPER ACTUATOR AND I/O SEE HEARTH 5 MODULATING DAMPER ACTUATOR AND I/O
