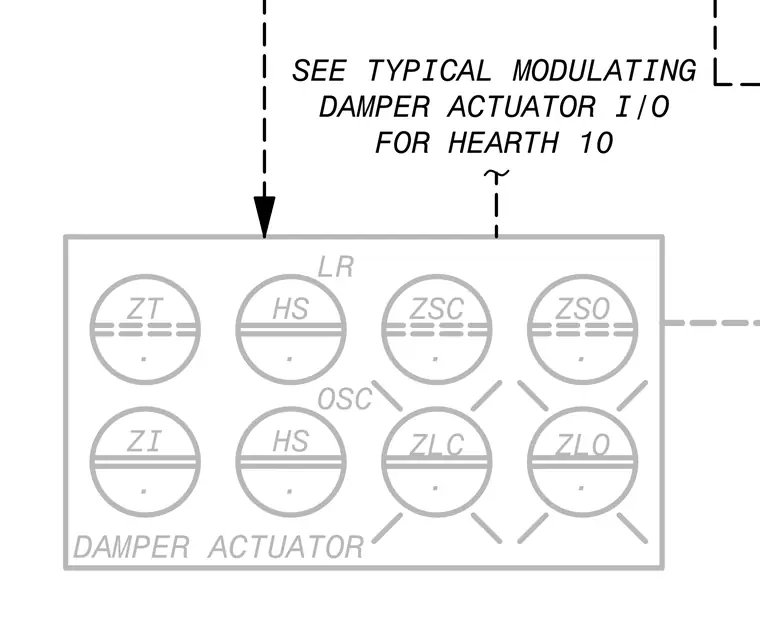

A damper actuator schematic diagram is detailed with input and output signal designations including ZT, ZI, HS, ZSC, ZSO, ZLC, and ZLO points. The assembly connects to a modulating damper actuator input and output system for hearth 10 per typical control requirements.
ZT . ZI . DAMPER ACTUATOR ZSC . ZSO . . ZLC . ZLO HS . LR HS . OSC SEE TYPICAL MODULATING DAMPER ACTUATOR I/O FOR HEARTH 10
