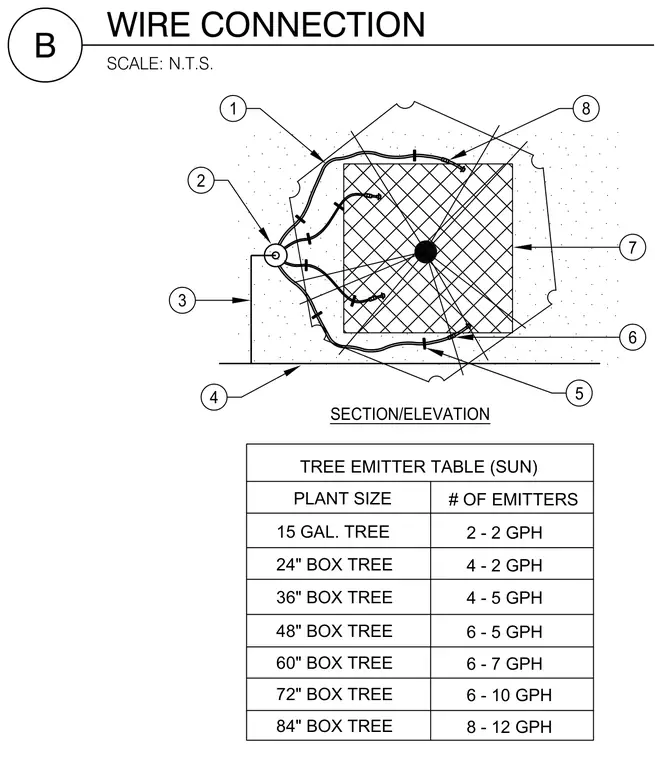

Irrigation layout and wire connection for tree drip manifolds, including an accompanying table for sun-exposed trees specifying the number and flow rate of emitters per box size ranging from fifteen gallons to eighty-four inches. The setup incorporates numbered callouts referencing specific components within the root zone and surrounding landscape area.
SECTION/ELEVATION # OF EMITTERS 2 - 2 GPH 15 GAL. TREE PLANT SIZE 24" BOX TREE 4 - 2 GPH TREE EMITTER TABLE (SUN) 48" BOX TREE 6 - 5 GPH 60" BOX TREE 6 - 7 GPH 36" BOX TREE 4 - 5 GPH 72" BOX TREE 6 - 10 GPH 84" BOX TREE 8 - 12 GPH 1 2 8 7 6 5 4 3 SCALE: B WIRE CONNECTION N.T.S.
