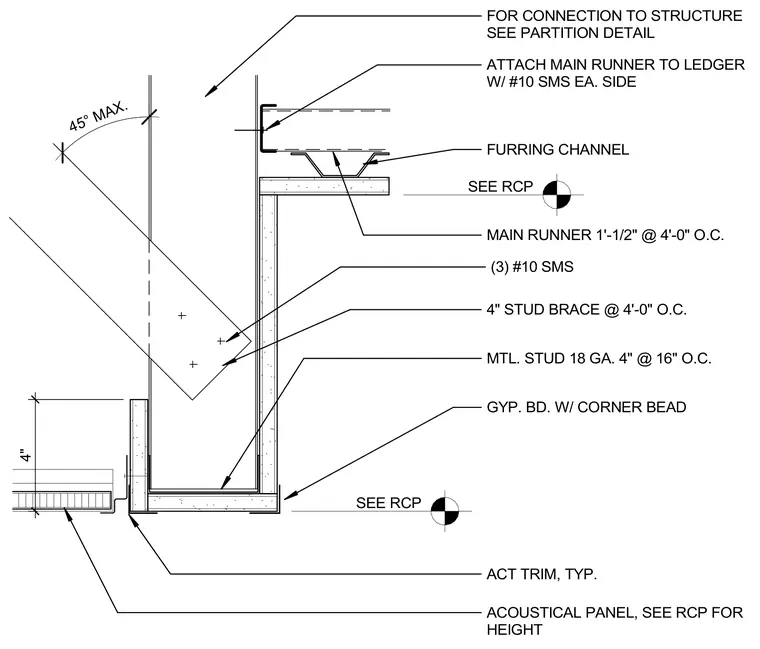

An eighteen-gauge four-inch metal stud frame drops from the overhead structure to form a stepped transition to an acoustical ceiling system. The gypsum board wall framing is finished with a corner bead at the vertical change in plane. A furring channel and main runner are secured to the ledger with number ten sheet metal screws on each side. A four-inch stud brace at forty-five degrees and four feet on center ties the drop framing back for lateral stability. Acoustical ceiling trim finishes the transition edge adjacent to the drop ceiling panels.
FOR CONNECTION TO STRUCTURE SEE PARTITION DETAIL 4" ATTACH MAIN RUNNER TO LEDGER W/ #10 SMS EA. SIDE FURRING CHANNEL MAIN RUNNER 1'-1/2" @ 4'-0" O.C. (3) #10 SMS 4" STUD BRACE @ 4'-0" O.C. MTL. STUD 18 GA. 4" @ 16" O.C. GYP. BD. W/ CORNER BEAD ACT TRIM, TYP. ACOUSTICAL PANEL, SEE RCP FOR HEIGHT SEE RCP SEE RCP 45° MAX.
