Irrigation Remote Control Valve and Valve Box Installation

Elements

Waterproofing / Flashing Connections / Plates

About this detail

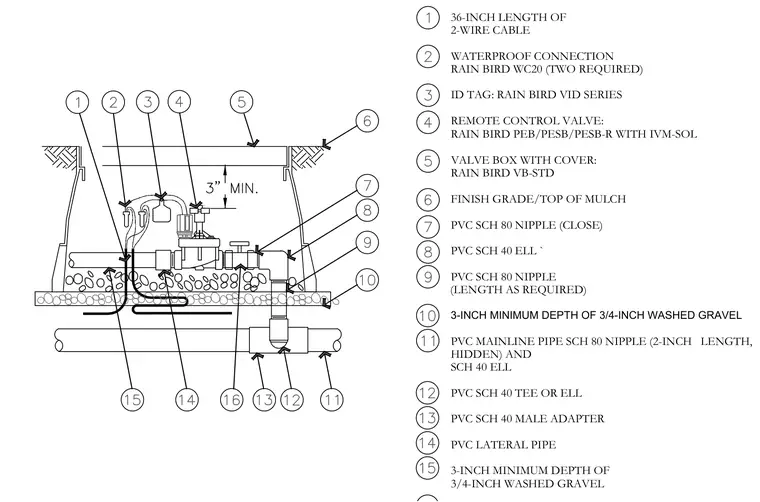

An irrigation remote control valve is housed inside a standard valve box with a cover, set flush with the finish grade and top of mulch. The assembly sits atop a three-inch minimum depth of three-quarter-inch washed gravel bed. PVC schedule 80 and schedule 40 nipples, elbows, tees, and male adapters connect the mainline pipe to the remote control valve and lateral pipe. Two waterproof connections join a thirty-six-inch length of two-wire cable to the valve, secured with an identification tag.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
