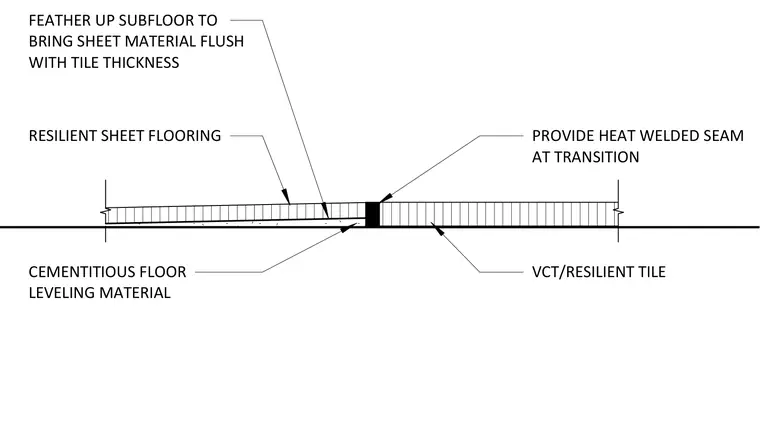

Resilient sheet flooring meets vinyl composition tile at a flush floor transition joint. Cementitious floor leveling material feathers up the subfloor to bring the sheet material flush with the adjacent tile thickness. A heat-welded seam is provided directly at the transition between the resilient sheet and VCT materials.
FEATHER UP SUBFLOOR TO BRING SHEET MATERIAL FLUSH WITH TILE THICKNESS CEMENTITIOUS FLOOR LEVELING MATERIAL RESILIENT SHEET FLOORING PROVIDE HEAT WELDED SEAM AT TRANSITION VCT/RESILIENT TILE
