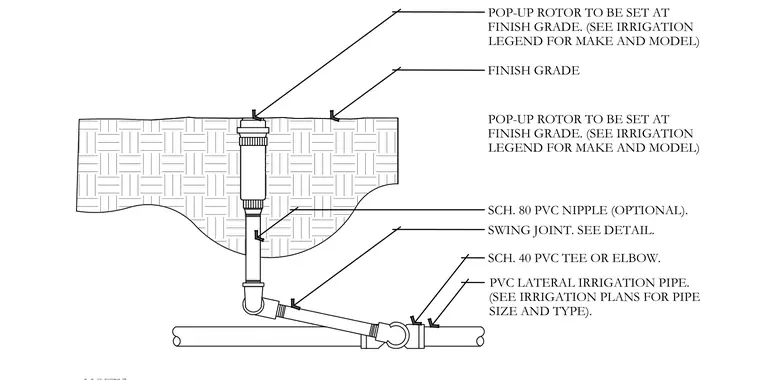

Pop-up rotor sprayheads are set flush with the finish grade. The assembly connects to a PVC lateral irrigation pipe using a schedule 40 PVC tee or elbow, a flexible swing joint, and an optional schedule 80 PVC nipple.
SCH. 80 PVC NIPPLE (OPTIONAL). SWING JOINT. SEE DETAIL. SCH. 40 PVC TEE OR ELBOW. PVC LATERAL IRRIGATION PIPE. (SEE IRRIGATION PLANS FOR PIPE SIZE AND TYPE). POP-UP ROTOR TO BE SET AT FINISH GRADE. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL) FINISH GRADE POP-UP ROTOR TO BE SET AT FINISH GRADE. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL)
