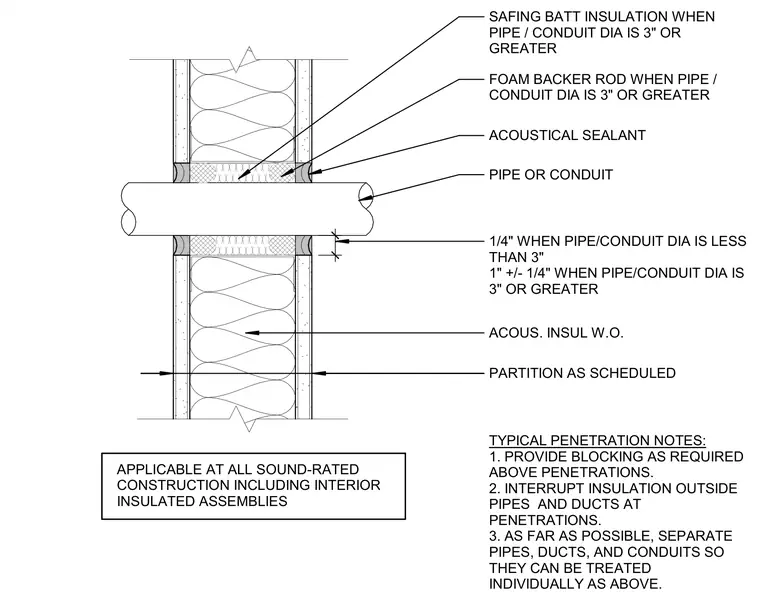

A pipe or conduit penetrates a sound-rated partition constructed with acoustical insulation and scheduled wall panels. An annular space of one-quarter inch is provided around pipes and conduits under three inches in diameter, while penetrations three inches or greater receive a one-inch space packed with safing batt insulation and a foam backer rod. Acoustical sealant is applied at both sides of the penetration to maintain the acoustic integrity of the assembly. Blocking is provided above penetrations as required, and insulation is interrupted outside the penetrated services.
ACOUS. INSUL W.O. PARTITION AS SCHEDULED ACOUSTICAL SEALANT PIPE OR CONDUIT TYPICAL PENETRATION NOTES: 1. PROVIDE BLOCKING AS REQUIRED ABOVE PENETRATIONS. 2. INTERRUPT INSULATION OUTSIDE PIPES AND DUCTS AT PENETRATIONS. 3. AS FAR AS POSSIBLE, SEPARATE PIPES, DUCTS, AND CONDUITS SO THEY CAN BE TREATED INDIVIDUALLY AS ABOVE. APPLICABLE AT ALL SOUND-RATED CONSTRUCTION INCLUDING INTERIOR INSULATED ASSEMBLIES FOAM BACKER ROD WHEN PIPE / CONDUIT DIA IS 3" OR GREATER SAFING BATT INSULATION WHEN PIPE / CONDUIT DIA IS 3" OR GREATER . 1/4" WHEN PIPE/CONDUIT DIA IS LESS THAN 3" 1" +/- 1/4" WHEN PIPE/CONDUIT DIA IS 3" OR GREATER
