Polymer Transfer Pump Piping Diagram and P&ID

About this detail

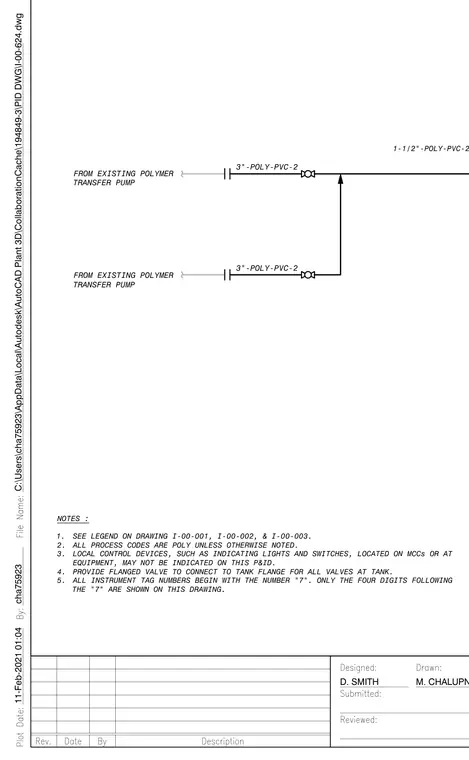

This piping and instrumentation diagram details the connection from existing polymer transfer pumps utilizing three-inch and one-and-a-half-inch poly-PVC piping. General notes specify that all process codes are poly unless otherwise noted, local control devices on motor control centers may not be indicated, and flanged valves are required to connect directly to tank flanges. Instrument tag numbers begin with the number seven with only the following four digits shown on this drawing. Flanged connections and valves interface with the polymer transfer lines per the referenced project legends.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
