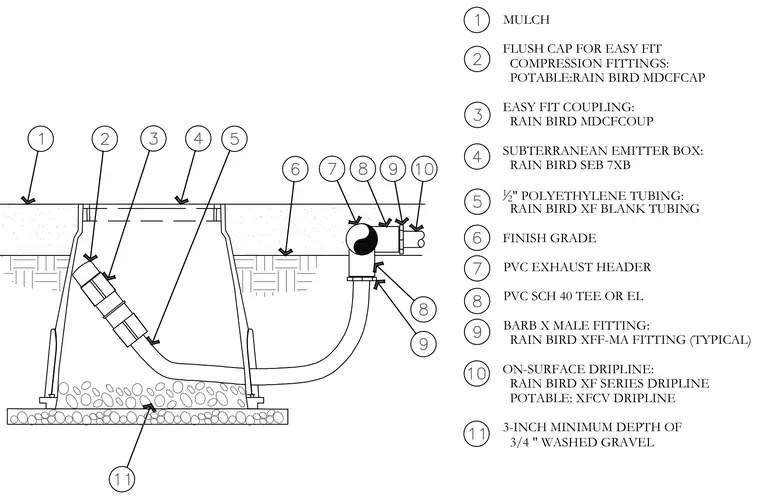

An underground irrigation assembly connects a PVC schedule 40 tee or elbow to half-inch polyethylene blank tubing via a barb-by-male fitting housed inside a subterranean emitter box. The emitter box rests on a three-inch minimum depth of three-quarter-inch washed gravel beneath a mulch layer and finish grade. An easy fit coupling and a flush cap for compression fittings terminate the tubing run. An on-surface dripline connects to the exhaust header to complete the distribution layout.
MULCH FLUSH CAP FOR EASY FIT COMPRESSION FITTINGS: POTABLE:RAIN BIRD MDCFCAP EASY FIT COUPLING: RAIN BIRD MDCFCOUP SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " POLYETHYLENE TUBING: RAIN BIRD XF BLANK TUBING FINISH GRADE PVC EXHAUST HEADER PVC SCH 40 TEE OR EL BARB X MALE FITTING: RAIN BIRD XFF-MA FITTING (TYPICAL) ON-SURFACE DRIPLINE: RAIN BIRD XF SERIES DRIPLINE POTABLE: XFCV DRIPLINE 3-INCH MINIMUM DEPTH OF 3/4 " WASHED GRAVEL
