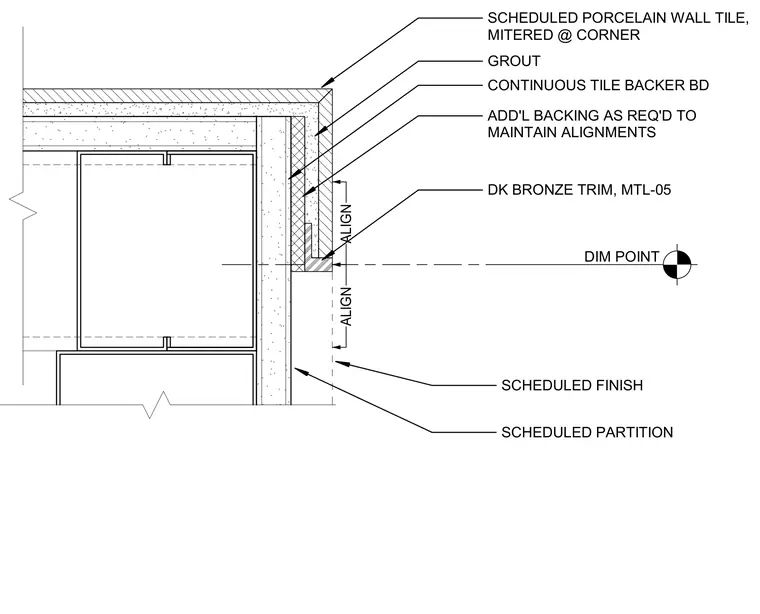

Scheduled porcelain wall tile is mitered at the outside corner and set with grout over continuous tile backer board. Additional backing is added as required to maintain proper alignments. A dark bronze metal trim piece designated as MTL-05 provides a clean termination at the base of the tile wrap. The entire assembly is supported by a scheduled partition finished with a scheduled finish.
DIM POINT SCHEDULED PARTITION CONTINUOUS TILE BACKER BD GROUT SCHEDULED PORCELAIN WALL TILE, MITERED @ CORNER DK BRONZE TRIM, MTL-05 SCHEDULED FINISH ALIGN ALIGN ADD'L BACKING AS REQ'D TO MAINTAIN ALIGNMENTS
