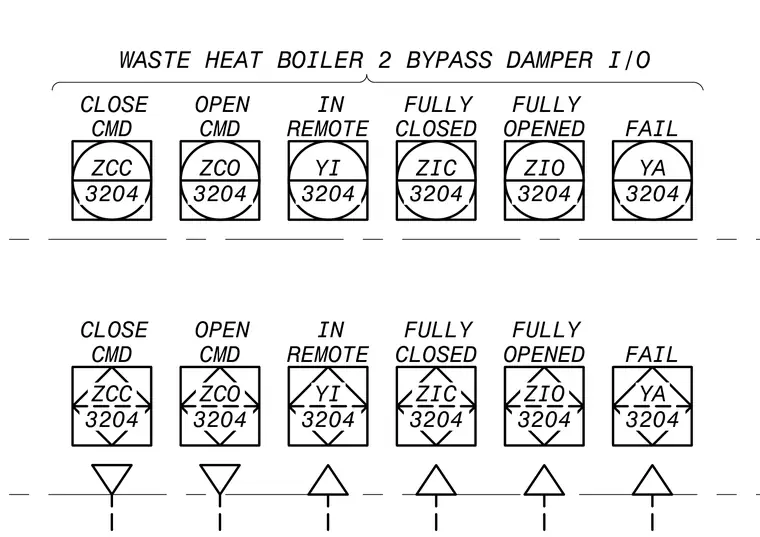

Input and output control points for waste heat boiler 2 bypass damper, including close commands, open commands, remote status, fully closed and opened status, and fail alarms.
YA 3204 FAIL YA 3204 FAIL ZIC 3204 CLOSED FULLY ZIC 3204 CLOSED FULLY ZIO 3204 OPENED FULLY ZIO 3204 OPENED FULLY WASTE HEAT BOILER 2 BYPASS DAMPER I/O YI 3204 REMOTE IN YI 3204 REMOTE IN ZCC 3204 CMD CLOSE ZCC 3204 CMD CLOSE ZCO 3204 CMD OPEN ZCO 3204 CMD OPEN
