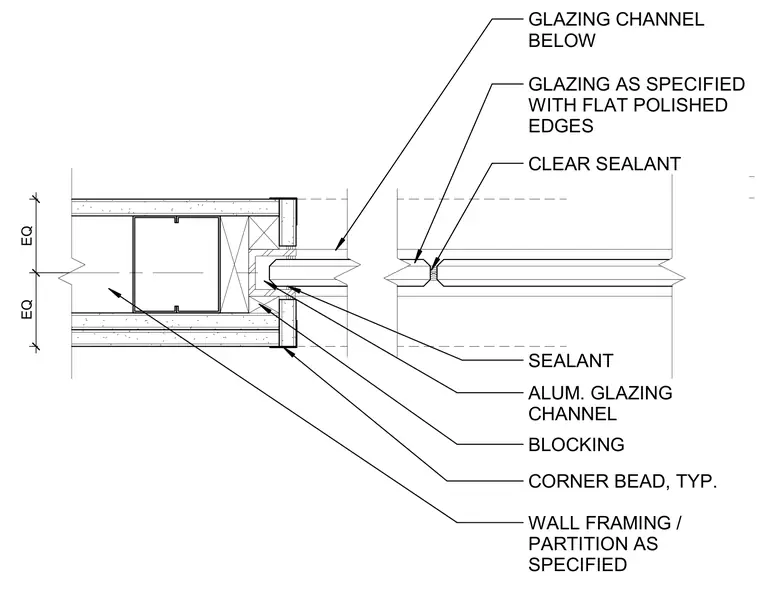

The assembly anchors specified glazing with flat polished edges into an aluminum glazing channel secured against wood blocking and wall framing. Clear sealant fills the joints between the glass panes and the perimeter channel. Typical corner beads finish the gypsum board edges of the partition framing on both sides.
EQ EQ GLAZING AS SPECIFIED WITH FLAT POLISHED EDGES CLEAR SEALANT ALUM. GLAZING CHANNEL SEALANT WALL FRAMING / PARTITION AS SPECIFIED CORNER BEAD, TYP. BLOCKING GLAZING CHANNEL BELOW
