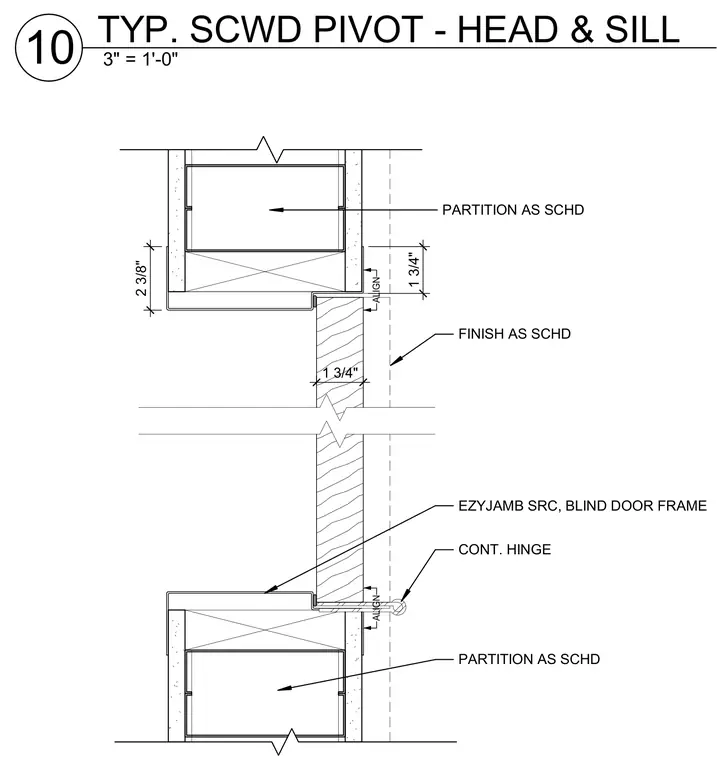

A blind door frame is set flush within a partition as scheduled, featuring an Ezyjamb SRC frame profile at the head and sill. A continuous hinge secures the one-and-three-quarter-inch door leaf aligned with the finish line. Clearances measure two-and-three-eighths inches and one-and-three-quarters inches around the frame assembly.
2 3/8" 1 3/4" ALIGN ALIGN FINISH AS SCHD EZYJAMB SRC, BLIND DOOR FRAME CONT. HINGE 1 3/4" PARTITION AS SCHD PARTITION AS SCHD 3" = 1'-0" 10 TYP. SCWD PIVOT - HEAD & SILL
