An interior partition wall terminates at a vertical mullion with an L-metal transition covered by paintable tape matched to the adjacent wall color. A backer rod and continuous fire sealant are applied at the mullion extension below, using neoprene for non-rated conditions. Fire safing with continuous fire sealant spans the entire length of the mullion at the edge of the slab. An interior mullion snap-on cap extension runs the entire width of the room over the vertical mullion containing insulation.

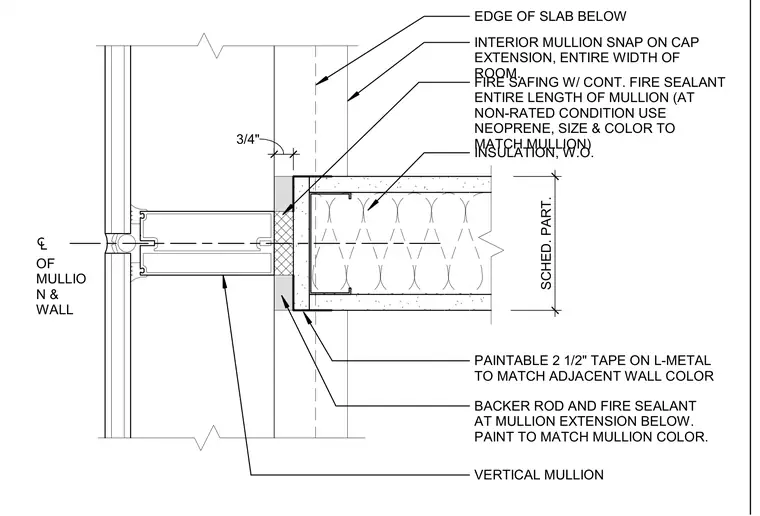

PAINTABLE 2 1/2" TAPE ON L-METAL TO MATCH ADJACENT WALL COLOR INSULATION, W.O. VERTICAL MULLION BACKER ROD AND FIRE SEALANT AT MULLION EXTENSION BELOW. PAINT TO MATCH MULLION COLOR. INTERIOR MULLION SNAP ON CAP EXTENSION, ENTIRE WIDTH OF ROOM. EDGE OF SLAB BELOW FIRE SAFING W/ CONT. FIRE SEALANT ENTIRE LENGTH OF MULLION (AT NON-RATED CONDITION USE NEOPRENE, SIZE & COLOR TO MATCH MULLION) OF MULLIO N & WALL SCHED. PART. 3/4"
