Wet Scrubber Drain Pump 1 Control Diagram

Elements

About this detail

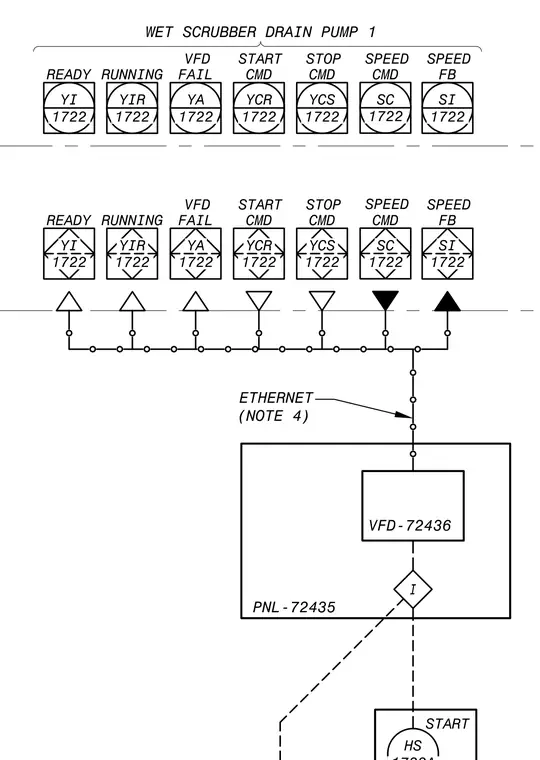

Control loop schematic for Wet Scrubber Drain Pump 1 detailing signal inputs and outputs routed through variable frequency drive VFD-72436 and panel PNL-72435. Status points include pump ready YI 1722, running YIR 1722, and variable frequency drive fail YA 1722. Command and feedback loops incorporate start command YCR 1722, stop command YCS 1722, speed command SC 1722, and speed feedback SI 1722. Communication is connected via Ethernet per note 4.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
