Interiors · I-TPM9C

Sushi Stall Ceiling and Digital Screen Interface Detail

Materials

Elements

About this detail

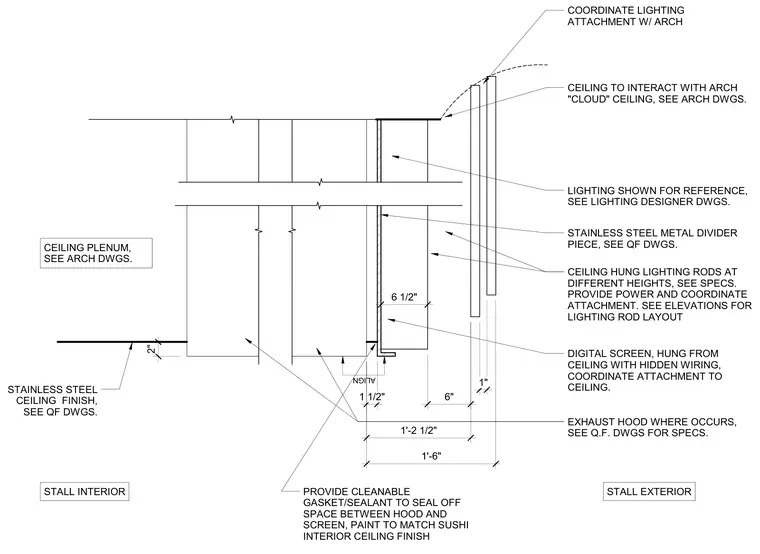

This interior detail shows the interface between a stainless steel ceiling finish, an exhaust hood, and a digital screen hung from the ceiling with hidden wiring. A cleanable gasket and sealant are provided to seal off the space between the hood and the screen, painted to match the sushi interior ceiling finish. Ceiling-hung lighting rods are positioned at varying heights with coordinate attachment requirements. A stainless steel metal divider piece separates the elements while the ceiling interacts with an adjacent architectural cloud ceiling.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
