A pop-up spray head or bubbler is mounted vertically with its top set flush at the finish grade. The spray head connects via a swing joint to a Schedule 40 PVC tee or elbow on the lateral irrigation line. All schedule 40 to schedule 80 PVC connections require teflon tape, and four-inch pop-ups are specified for turf areas with mandatory check valves.

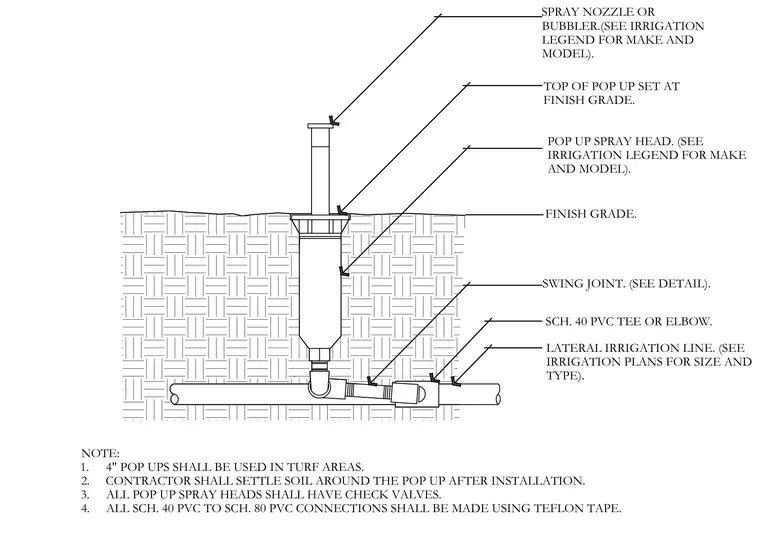

SCH. 40 PVC TEE OR ELBOW. NOTE: 1. 4" POP UPS SHALL BE USED IN TURF AREAS. 2. CONTRACTOR SHALL SETTLE SOIL AROUND THE POP UP AFTER INSTALLATION. 3. ALL POP UP SPRAY HEADS SHALL HAVE CHECK VALVES. 4. ALL SCH. 40 PVC TO SCH. 80 PVC CONNECTIONS SHALL BE MADE USING TEFLON TAPE. SPRAY NOZZLE OR BUBBLER.(SEE IRRIGATION LEGEND FOR MAKE AND MODEL). TOP OF POP UP SET AT FINISH GRADE. POP UP SPRAY HEAD. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL). LATERAL IRRIGATION LINE. (SEE IRRIGATION PLANS FOR SIZE AND TYPE). SWING JOINT. (SEE DETAIL). FINISH GRADE.
