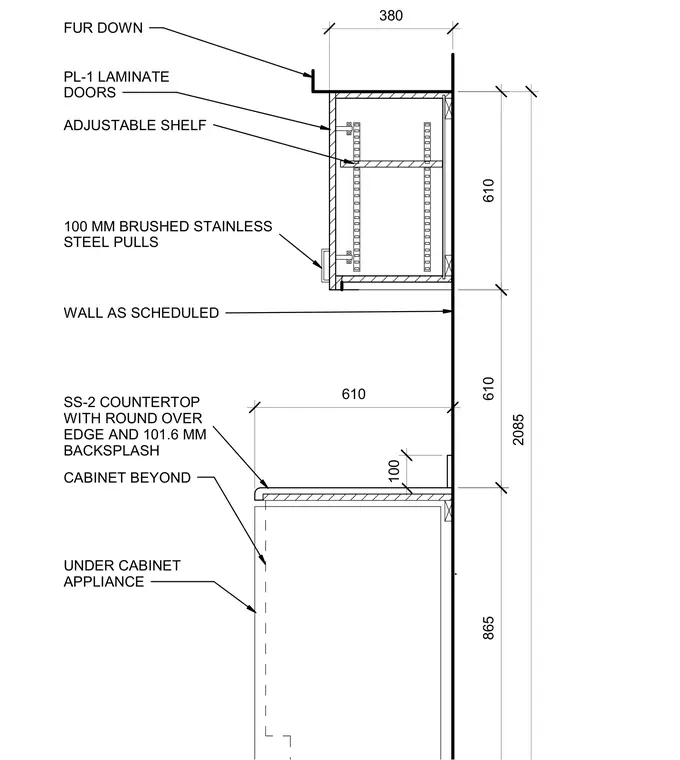

An upper wall cabinet with PL-1 laminate doors and an adjustable shelf is mounted to a fur down wall as scheduled. The lower assembly features an SS-2 countertop with a round over edge and a 101.6 mm backsplash, positioned above an undercounter appliance and base cabinet. The upper cabinet includes 100 mm brushed stainless steel pulls.
610 100 610 380 610 SS-2 COUNTERTOP WITH ROUND OVER EDGE AND 101.6 MM BACKSPLASH 100 MM BRUSHED STAINLESS STEEL PULLS PL-1 LAMINATE DOORS ADJUSTABLE SHELF FUR DOWN WALL AS SCHEDULED CABINET BEYOND UNDER CABINET APPLIANCE 865 2085
