A continuous one-and-a-half-inch by one-and-a-half-inch by sixteen-gauge minimum metal angle is secured with self-tapping screws to frame the access panel opening. Hanger wires support the light fixture and ceiling framing system in accordance with electrical and ceiling notes. The surrounding ceiling assembly consists of acoustical tile or gypsum board.

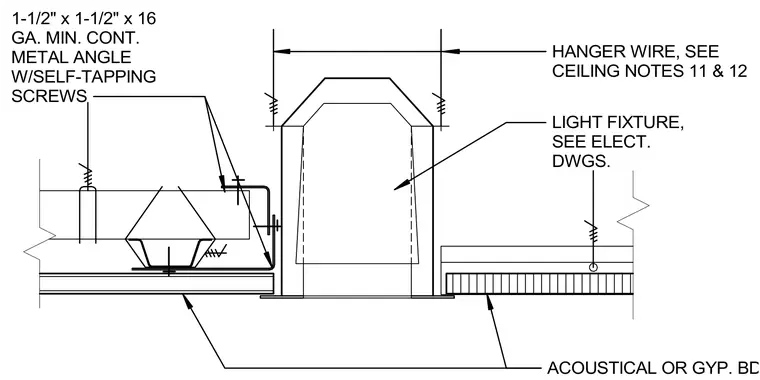

1-1/2" x 1-1/2" x 16 GA. MIN. CONT. METAL ANGLE W/SELF-TAPPING SCREWS HANGER WIRE, SEE CEILING NOTES 11 & 12 LIGHT FIXTURE, SEE ELECT. DWGS. ACOUSTICAL OR GYP. BD.
