A manual line drain valve is installed on a polyvinyl chloride schedule 40 tee connected to a polyvinyl chloride lateral pipe. The assembly is housed within a round valve box with a cover, set flush with the finish grade and top of mulch. The valve box rests over a minimum depth of six inches of three-quarter-inch washed gravel, providing a two-inch minimum clearance below the filtered drain valve.

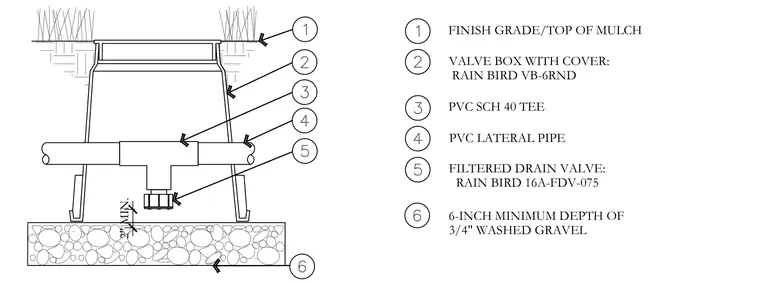

2" MIN. FINISH GRADE/TOP OF MULCH VALVE BOX WITH COVER: RAIN BIRD VB-6RND PVC SCH 40 TEE PVC LATERAL PIPE FILTERED DRAIN VALVE: RAIN BIRD 16A-FDV-075 6-INCH MINIMUM DEPTH OF 3/4" WASHED GRAVEL /I © 2 2 3 4 © 2 S 5 5 Effl A 6 ,C0C2©0( 01 y OOI ; OI
