Interiors · I-SG95V

Gyp Bd Clg to Act Transition

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Ceilings Floors / Slabs Bracing Roof / Floor Openings

Connections

Bracing Connection Bolted Connection

About this detail

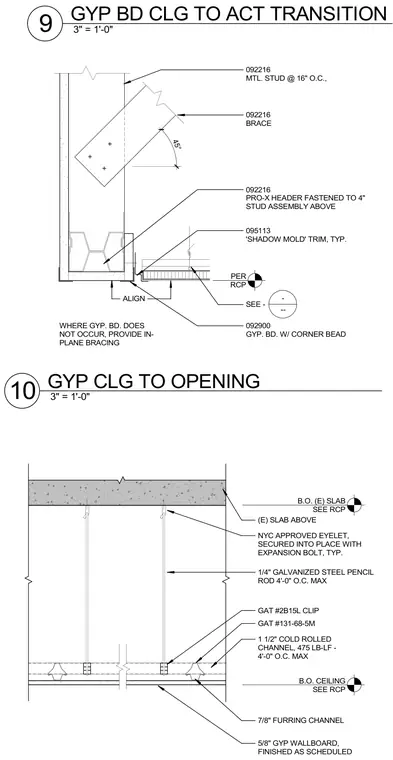

This interior detail shows a transition between a gypsum board ceiling and an acoustical ceiling tile system using a shadow mold trim typically aligned with adjacent construction. A metal stud assembly with a Pro-X header is supported from above, featuring a forty-five degree diagonal brace fastened to metal studs spaced sixteen inches on center. Where gypsum board does not occur, in-plane bracing is provided as aligned per the reflected ceiling plan. Below the structural slab, a suspended ceiling framing system utilizes one-quarter-inch galvanized steel pencil rods spaced at a maximum of four feet on center, secured with NYC approved eyelets and expansion bolts. The suspension system incorporates GAT number 2B15L clips and GAT number 131-68-5M components supporting one-and-one-half-inch cold rolled channels at four feet on center maximum. Furring channels at seven-eighths of an inch carry five-eighths-inch gypsum wallboard finished as scheduled.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
