Furnace 1 Main Control Panel

About this detail

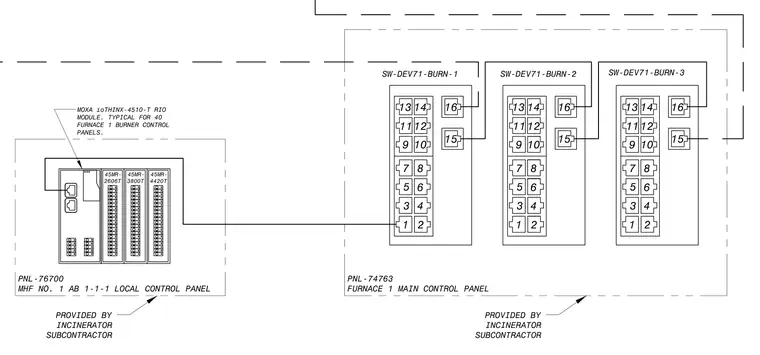

Furnace 1 main control panel PNL-74763 and local control panel PNL-76700 are provided by the incinerator subcontractor. The local control panel incorporates a MOXA ioTHINX-4510-T RIO module, typical for forty furnace 1 burner control panels, along with 45MR-2606T, 45MR-3800T, and 45MR-4420T units. Interfacing wiring connects the local control panel to switch devices SW-DEV71-BURN-1, SW-DEV71-BURN-2, and SW-DEV71-BURN-3 within the main control panel across numbered terminal blocks 1 through 16.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
