Interiors · I-S7DG5

Suspended Ceiling Edge Condition at Wall

Materials

Elements

About this detail

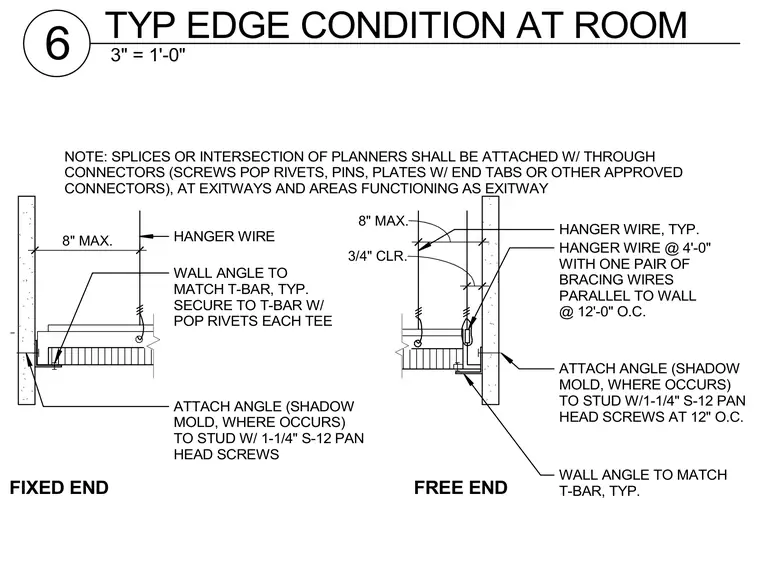

Suspended ceiling edge conditions occur for both fixed and free ends at a wall junction. The assembly features a wall angle or shadow mold secured to studs with one-and-one-quarter-inch S-12 pan head screws at twelve inches on center. The ceiling grid tee connects to the wall angle with pop rivets at each tee. Hanger wires are spaced at four feet on center, maintaining a three-quarter-inch clearance and positioned a maximum of eight inches from the wall. Free end configurations include one pair of bracing wires parallel to the wall at twelve feet on center. Splices or intersections are secured with through connectors such as screws, pop rivets, or pins at exitways.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
