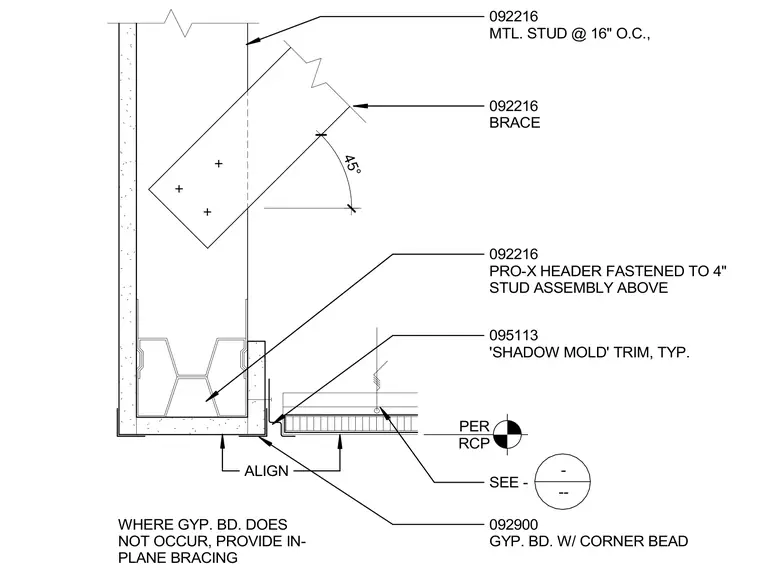

An acoustical ceiling transitions at a gypsum board wall featuring a shadow mold trim detail. A metal stud assembly is framed with a pro-x header fastened above, and gypsum board with corner bead finishes the wall partition. A forty-five degree diagonal brace ties into the metal stud framing for in-plane stability where gypsum board does not occur. Alignment with the reflected ceiling plan is coordinated at the perimeter trim.
092216 BRACE 092216 MTL. STUD @ 16" O.C., SEE - 092900 GYP. BD. W/ CORNER BEAD 092216 PRO-X HEADER FASTENED TO 4" STUD ASSEMBLY ABOVE 095113 'SHADOW MOLD' TRIM, TYP. - -- WHERE GYP. BD. DOES NOT OCCUR, PROVIDE IN- PLANE BRACING ALIGN PER RCP 45°
