Plumbing · I-RVX68

Fertigation Injector with Bypass

Materials

About this detail

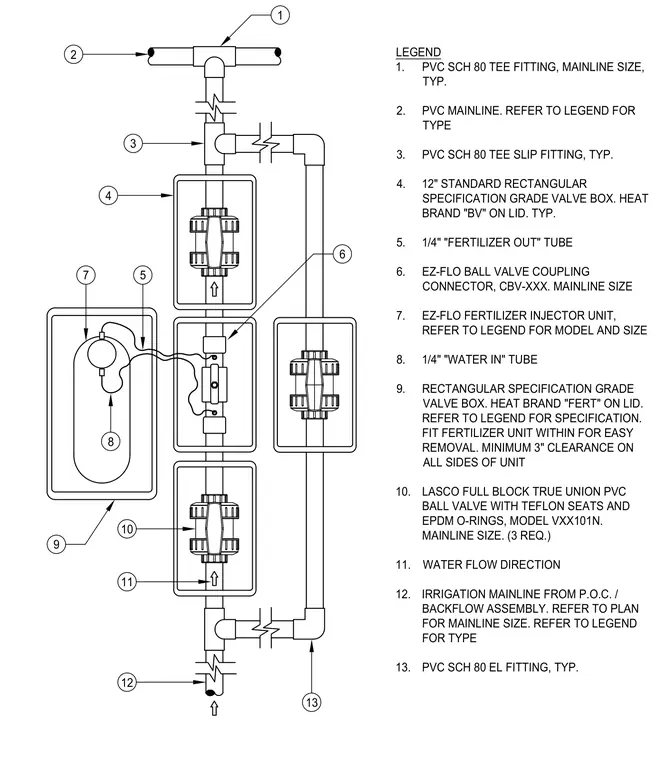

An irrigation mainline from the point of connection feeds into a PVC Schedule 80 system equipped with three Lasco full-block true union PVC ball valves with Teflon seats and EPDM O-rings for bypass control. The system incorporates an EZ-Flo fertilizer injector unit housed within a rectangular specification-grade valve box with a heat-branded 'FERT' lid, maintaining a minimum 3-inch clearance on all sides for easy removal. Water and fertilizer tubes connect the injector unit to the mainline via an EZ-Flo ball valve coupling connector. The assembly is enclosed and accessed through multiple standard rectangular specification-grade valve boxes with heat-branded lids for the ball valves and injector unit.
