Interiors · I-RK4VG

Portal Cove Light

Materials

About this detail

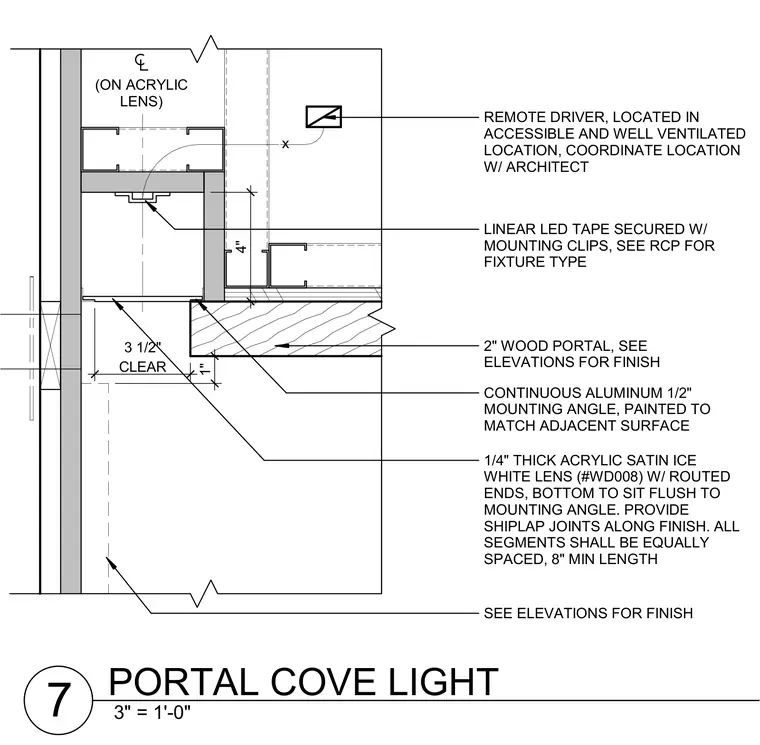

A linear LED tape light is secured with mounting clips inside a framed recess above a two-inch wood portal. A continuous one-half-inch aluminum mounting angle is painted to match the adjacent surface and supports a one-quarter-inch thick acrylic satin ice white lens with routed ends, sitting flush to the angle with shiplap joints between segments. A remote driver powers the fixture from an accessible and well-ventilated location coordinated with the architect.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
