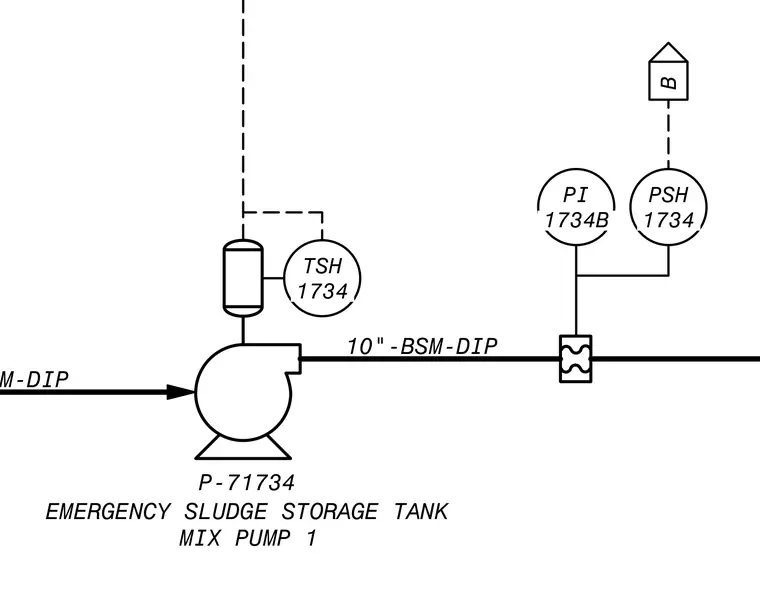

An emergency sludge storage tank mix pump connects to a twelve-inch ductile iron suction pipe and a ten-inch ductile iron discharge pipe. The system integrates a temperature switch, a pressure indicator, and a pressure switch for monitoring the pump operation.
12"-BSM-DIP 10"-BSM-DIP P-71734 EMERGENCY SLUDGE STORAGE TANK MIX PUMP 1 TSH 1734 PI 1734B B PSH 1734
