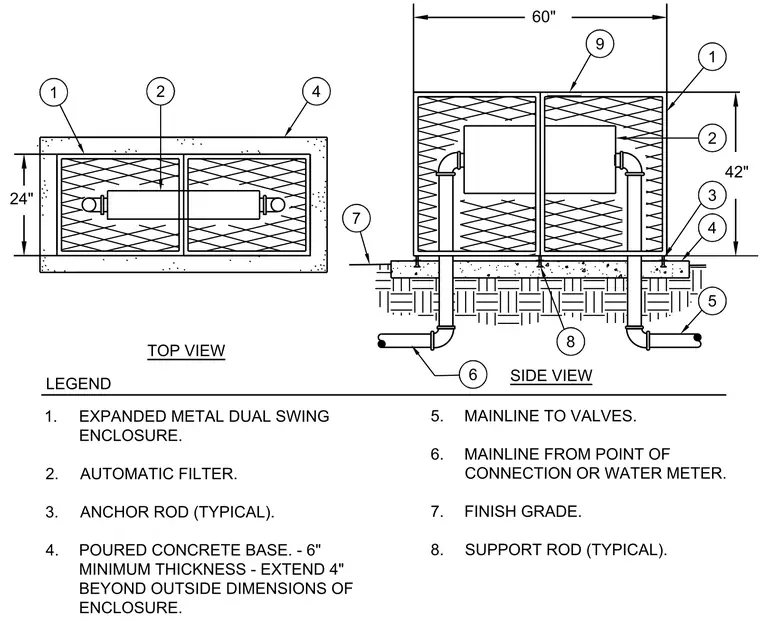

An automatic filter is housed within an expanded metal dual swing enclosure measuring 60 inches wide, 24 inches deep, and 42 inches high. The enclosure is secured by typical anchor rods and support rods to a poured concrete base. The concrete base has a 6-inch minimum thickness and extends 4 inches beyond the outside dimensions of the enclosure above finish grade. Mainline piping connects to valves and runs from the point of connection or water meter into the system.
LEGEND 1 TOP VIEW SIDE VIEW 6 8 5 2 7 4 3 4 1 2 1. EXPANDED METAL DUAL SWING ENCLOSURE. 2. AUTOMATIC FILTER. 3. ANCHOR ROD (TYPICAL). 4. POURED CONCRETE BASE. - 6" MINIMUM THICKNESS - EXTEND 4" BEYOND OUTSIDE DIMENSIONS OF ENCLOSURE. 5. MAINLINE TO VALVES. 6. MAINLINE FROM POINT OF CONNECTION OR WATER METER. 7. FINISH GRADE. 8. SUPPORT ROD (TYPICAL). 9 60" 24" 42"
