Flooring transition between carpet and either porcelain tile or resilient flooring using a Schluter Schiene-AE satin anodized aluminum metal transition strip. The transition strip is anchored in a thin-set mortar bed and positioned so that the profile faces away from the carpet and abuts the resilient or tile flooring. The profile is completely filled with thin-set mortar, and carpet is floated or leveled as necessary to avoid abrupt changes in height. Flooring transitions are specified to occur at the center of the door leaf unless noted otherwise.

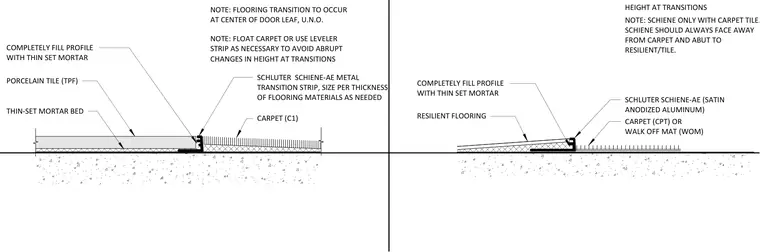

CARPET (C1) PORCELAIN TILE (TPF) SCHLUTER SCHIENE-AE METAL TRANSITION STRIP, SIZE PER THICKNESS OF FLOORING MATERIALS AS NEEDED NOTE: FLOAT CARPET OR USE LEVELER STRIP AS NECESSARY TO AVOID ABRUPT CHANGES IN HEIGHT AT TRANSITIONS THIN-SET MORTAR BED COMPLETELY FILL PROFILE WITH THIN SET MORTAR NOTE: FLOORING TRANSITION TO OCCUR AT CENTER OF DOOR LEAF, U.N.O. CARPET (CPT) OR WALK OFF MAT (WOM) SCHLUTER SCHIENE-AE (SATIN ANODIZED ALUMINUM) RESILIENT FLOORING NOTE: SCHIENE ONLY WITH CARPET TILE. SCHIENE SHOULD ALWAYS FACE AWAY FROM CARPET AND ABUT TO RESILIENT/TILE. COMPLETELY FILL PROFILE WITH THIN SET MORTAR NECESSARY TO AVOID ABRUPT CHANGES IN HEIGHT AT TRANSITIONS
