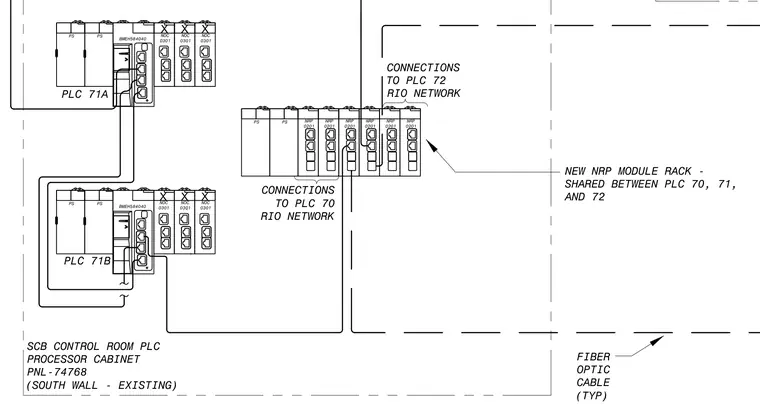

Network connections within the SCB control room programmable logic controller processor cabinet on the existing south wall. A new network remote processor module rack is shared between programmable logic controllers seventy, seventy-one, and seventy-two. Fiber optic cables connect the processor units to the remote I/O network.
FIBER OPTIC CABLE (TYP) SCB CONTROL ROOM PLC PROCESSOR CABINET PNL-74768 (SOUTH WALL - EXISTING) PLC 71B X X X X X X PLC 71A NOC 0301 NOC 0301 NOC 0301 NOC 0301 NOC 0301 NOC 0301 NRP 0201 NRP 0201 NRP 0201 NRP 0201 PS PS PS PS PS PS BMEH584040 BMEH584040 NEW NRP MODULE RACK - SHARED BETWEEN PLC 70, 71, AND 72 NRP 0201 NRP 0201 CONNECTIONS TO PLC 72 RIO NETWORK CONNECTIONS TO PLC 70 RIO NETWORK
